EQUIPMENT CA Site

1

1068654

Kit, Cantilever Arm, Bolt On - Right

1

A

Create/add to Wishlist

1

1068655

Kit, Cantilever Arm, Bolt On - Left

1

A

Create/add to Wishlist

2

1068656

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
8	Tip, Plastic, Black	1	1
9	Washer, Nylon (1/4 x 1/2 x 1/32")	1	1
10	Lever, Actuator	1	1
12	Tube, Arm, Black	1	1
13	Spring, Compression (5/8 x 1 x 3/64")	1	1
14	Spacer, Coved (1/4 x 1 x 9/16")	1	1
16	Washer, Nylon (3/8 x 7/8 x 1/16")	1	1
17	Plug, Latch	1	1
18	NLA - Pin, Locking	1	1
19	Bracket, Armrest Mounting, Black	1	1
21	Screw, Socket Head (1/4-20 x 1")	1	2
	NLA - Lockwasher, High Collar (1/4")	1	2
22	Clamp, Half, Non-Threaded	1	1
26	Arm Support, Clamp On	1	1
23	Clamp, Half, Threaded	1	1
24	NLA - Screw, Hex Head (1/4-28 x 3/4")	1	1
25	Screw, Hex Head (1/4-28 x 2")	1	1
1	Locknut (1/4-28)	1	3
4	Tube, Arm, Extension, Black	1	1
5	Plug Button, Black (1")	1	1
6	Screw, Phillips Pan Head (#10-32 x 1-3/8")	1	2
7	Tube, Slide, Cantilever Arm, Black	1	1
	Screw, Socket Head (1/4-20 x 1")	1	2
	NLA - Lockwasher, High Collar (1/4")	1	2
	NLA - Screw, Hex Head (1/4-28 x 3/4")	1	1
	Screw, Hex Head (1/4-28 x 2")	1	1
	Bracket, Armrest Mounting, Black	1	1
	Tube, Arm, Extension, Black	1	1
	Tube, Slide, Cantilever Arm, Black	1	1
	Tube, Arm, Black	1	1
	Plug, Latch	1	1
	Spring, Compression (5/8 x 1 x 3/64")	1	1
	Washer, Nylon (3/8 x 7/8 x 1/16")	1	1
	Locknut (1/4-28)	1	3
	NLA - Pin, Locking	1	1
	Screw, Phillips Pan Head (#10-32 x 1-3/8")	1	2
	Lever, Actuator	1	1
	Tip, Plastic, Black	1	1
	Spacer, Coved (1/4 x 1 x 9/16")	1	1
	Washer, Nylon (1/4 x 1/2 x 1/32")	1	1
	Plug Button, Black (1")	1	1
	Clamp, Half, Non-Threaded	1	1
	Clamp, Half, Threaded	1	1
	Arm Support, Clamp On	1	1
14	Lever, Actuator	1	1
15	NLA - Pin, Locking	1	1
16	Spacer, Coved (1/4 x 1 x 9/16")	1	1
17	Washer, Nylon (3/8 x 7/8 x 1/16")	1	1
18	NLA - Screw, Hex Head (1/4-28 x 3/4")	1	1
19	Screw, Socket Head (1/4-20 x 1")	1	2
20	NLA - Lockwasher, High Collar (1/4")	1	2
21	Locknut (1/4-28)	1	3
22	Plug Button, Black (1")	1	1
23	Screw, Phillips Pan Head (#10-32 x 1-3/8")	1	2
24	Washer, Nylon (1/4 x 1/2 x 1/32")	1	1
11	Plug, Latch	1	1
12	Screw, Hex Head (1/4-28 x 2")	1	1
13	Tip, Plastic, Black	1	1
1	Locknut (1/4-28)	1	3
4	Tube, Arm, Extension, Black	1	1
5	Plug Button, Black (1")	1	1
6	Screw, Phillips Pan Head (#10-32 x 1-3/8")	1	2
7	Tube, Slide, Cantilever Arm, Black	1	1
8	Tip, Plastic, Black	1	1
9	Washer, Nylon (1/4 x 1/2 x 1/32")	1	1
10	Lever, Actuator	1	1
12	Tube, Arm, Black	1	1
13	Spring, Compression (5/8 x 1 x 3/64")	1	1
14	Spacer, Coved (1/4 x 1 x 9/16")	1	1
16	Washer, Nylon (3/8 x 7/8 x 1/16")	1	1
17	Plug, Latch	1	1
18	NLA - Pin, Locking	1	1
19	Bracket, Armrest Mounting, Black	1	1
21	Screw, Socket Head (1/4-20 x 1")	1	2
	NLA - Lockwasher, High Collar (1/4")	1	2
22	Clamp, Half, Non-Threaded	1	1
23	Clamp, Half, Threaded	1	1
24	NLA - Screw, Hex Head (1/4-28 x 3/4")	1	1
25	Screw, Hex Head (1/4-28 x 2")	1	1
26	Arm Support, Clamp On	1	1
3	Bracket, Armrest Mounting, Black	1	1
4	Arm Support, Clamp On	1	1
5	Clamp, Half, Threaded	1	1
6	Clamp, Half, Non-Threaded	1	1
7	Tube, Arm, Extension, Black	1	1
8	Tube, Slide, Cantilever Arm, Black	1	1
9	Tube, Arm, Black	1	1
10	Spring, Compression (5/8 x 1 x 3/64")	1	1
1	Locknut (1/4-28)	1	3
4	Tube, Arm, Extension, Black	1	1
5	Plug Button, Black (1")	1	1
6	Screw, Phillips Pan Head (#10-32 x 1-3/8")	1	2
7	Tube, Slide, Cantilever Arm, Black	1	1
8	Tip, Plastic, Black	1	1
9	Washer, Nylon (1/4 x 1/2 x 1/32")	1	1
10	Lever, Actuator	1	1
12	Tube, Arm, Black	1	1
13	Spring, Compression (5/8 x 1 x 3/64")	1	1
14	Spacer, Coved (1/4 x 1 x 9/16")	1	1
16	Washer, Nylon (3/8 x 7/8 x 1/16")	1	1
17	Plug, Latch	1	1
18	NLA - Pin, Locking	1	1
19	Bracket, Armrest Mounting, Black	1	1
21	Screw, Socket Head (1/4-20 x 1")	1	2
	NLA - Lockwasher, High Collar (1/4")	1	2
22	Clamp, Half, Non-Threaded	1	1
23	Clamp, Half, Threaded	1	1
24	NLA - Screw, Hex Head (1/4-28 x 3/4")	1	1
25	Screw, Hex Head (1/4-28 x 2")	1	1
26	Arm Support, Clamp On	1	1

Arm Assembly, Cantilever - Right

1

D ,B

Create/add to Wishlist

2

1068657

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
1	Locknut (1/4-28)	1	3
4	Tube, Arm, Extension, Black	1	1
5	Plug Button, Black (1")	1	1
6	Screw, Phillips Pan Head (#10-32 x 1-3/8")	1	2
7	Tube, Slide, Cantilever Arm, Black	1	1
8	Tip, Plastic, Black	1	1
9	Washer, Nylon (1/4 x 1/2 x 1/32")	1	1
10	Lever, Actuator	1	1
12	Tube, Arm, Black	1	1
13	Spring, Compression (5/8 x 1 x 3/64")	1	1
14	Spacer, Coved (1/4 x 1 x 9/16")	1	1
16	Washer, Nylon (3/8 x 7/8 x 1/16")	1	1
17	Plug, Latch	1	1
18	NLA - Pin, Locking	1	1
19	Bracket, Armrest Mounting, Black	1	1
21	Screw, Socket Head (1/4-20 x 1")	1	2
	NLA - Lockwasher, High Collar (1/4")	1	2
22	Clamp, Half, Non-Threaded	1	1
23	Clamp, Half, Threaded	1	1
24	NLA - Screw, Hex Head (1/4-28 x 3/4")	1	1
25	Screw, Hex Head (1/4-28 x 2")	1	1
26	Arm Support, Clamp On	1	1
	Bracket, Armrest Mounting, Black	1	1
	Tube, Arm, Extension, Black	1	1
	Tube, Slide, Cantilever Arm, Black	1	1
	Tube, Arm, Black	1	1
	Plug, Latch	1	1
	Spring, Compression (5/8 x 1 x 3/64")	1	1
	Washer, Nylon (3/8 x 7/8 x 1/16")	1	1
	Locknut (1/4-28)	1	3
	NLA - Pin, Locking	1	1
	Screw, Phillips Pan Head (#10-32 x 1-3/8")	1	2
	Lever, Actuator	1	1
	Tip, Plastic, Black	1	1
	Spacer, Coved (1/4 x 1 x 9/16")	1	1
	Washer, Nylon (1/4 x 1/2 x 1/32")	1	1
	Plug Button, Black (1")	1	1
	Clamp, Half, Non-Threaded	1	1
	Clamp, Half, Threaded	1	1
	Arm Support, Clamp On	1	1
	Screw, Socket Head (1/4-20 x 1")	1	2
	NLA - Lockwasher, High Collar (1/4")	1	2
	NLA - Screw, Hex Head (1/4-28 x 3/4")	1	1
	Screw, Hex Head (1/4-28 x 2")	1	1
3	Bracket, Armrest Mounting, Black	1	1
4	Arm Support, Clamp On	1	1
5	Clamp, Half, Threaded	1	1
6	Clamp, Half, Non-Threaded	1	1
7	Tube, Arm, Extension, Black	1	1
8	Tube, Slide, Cantilever Arm, Black	1	1
9	Tube, Arm, Black	1	1
10	Spring, Compression (5/8 x 1 x 3/64")	1	1
11	Plug, Latch	1	1
12	Screw, Hex Head (1/4-28 x 2")	1	1
13	Tip, Plastic, Black	1	1
14	Lever, Actuator	1	1
15	NLA - Pin, Locking	1	1
16	Spacer, Coved (1/4 x 1 x 9/16")	1	1
17	Washer, Nylon (3/8 x 7/8 x 1/16")	1	1
18	NLA - Screw, Hex Head (1/4-28 x 3/4")	1	1
19	Screw, Socket Head (1/4-20 x 1")	1	2
20	NLA - Lockwasher, High Collar (1/4")	1	2
21	Locknut (1/4-28)	1	3
22	Plug Button, Black (1")	1	1
23	Screw, Phillips Pan Head (#10-32 x 1-3/8")	1	2
24	Washer, Nylon (1/4 x 1/2 x 1/32")	1	1
1	Locknut (1/4-28)	1	3
4	Tube, Arm, Extension, Black	1	1
5	Plug Button, Black (1")	1	1
6	Screw, Phillips Pan Head (#10-32 x 1-3/8")	1	2
7	Tube, Slide, Cantilever Arm, Black	1	1
8	Tip, Plastic, Black	1	1
9	Washer, Nylon (1/4 x 1/2 x 1/32")	1	1
10	Lever, Actuator	1	1
12	Tube, Arm, Black	1	1
13	Spring, Compression (5/8 x 1 x 3/64")	1	1
14	Spacer, Coved (1/4 x 1 x 9/16")	1	1
16	Washer, Nylon (3/8 x 7/8 x 1/16")	1	1
17	Plug, Latch	1	1
18	NLA - Pin, Locking	1	1
19	Bracket, Armrest Mounting, Black	1	1
21	Screw, Socket Head (1/4-20 x 1")	1	2
	NLA - Lockwasher, High Collar (1/4")	1	2
22	Clamp, Half, Non-Threaded	1	1
23	Clamp, Half, Threaded	1	1
24	NLA - Screw, Hex Head (1/4-28 x 3/4")	1	1
25	Screw, Hex Head (1/4-28 x 2")	1	1
26	Arm Support, Clamp On	1	1
1	Locknut (1/4-28)	1	3
4	Tube, Arm, Extension, Black	1	1
5	Plug Button, Black (1")	1	1
6	Screw, Phillips Pan Head (#10-32 x 1-3/8")	1	2
7	Tube, Slide, Cantilever Arm, Black	1	1
8	Tip, Plastic, Black	1	1
9	Washer, Nylon (1/4 x 1/2 x 1/32")	1	1
10	Lever, Actuator	1	1
12	Tube, Arm, Black	1	1
13	Spring, Compression (5/8 x 1 x 3/64")	1	1
14	Spacer, Coved (1/4 x 1 x 9/16")	1	1
16	Washer, Nylon (3/8 x 7/8 x 1/16")	1	1
17	Plug, Latch	1	1
18	NLA - Pin, Locking	1	1
19	Bracket, Armrest Mounting, Black	1	1
21	Screw, Socket Head (1/4-20 x 1")	1	2
	NLA - Lockwasher, High Collar (1/4")	1	2
22	Clamp, Half, Non-Threaded	1	1
23	Clamp, Half, Threaded	1	1
24	NLA - Screw, Hex Head (1/4-28 x 3/4")	1	1
25	Screw, Hex Head (1/4-28 x 2")	1	1
26	Arm Support, Clamp On	1	1

Arm Assembly, Cantilever - Left

1

B ,D

Create/add to Wishlist

3

1058542

Bracket, Armrest Mounting, Black

1

Create/add to Wishlist

4

1042598

Tube, Arm, Extension, Black

1

Create/add to Wishlist

5

1068600

Tube, Slide, Cantilever Arm, Black

1

Create/add to Wishlist

6

1068588

Tube, Arm, Black

1

Create/add to Wishlist

7

1058232

Plug, Latch

1

Create/add to Wishlist

8

1011511

Spring, Compression (5/8 x 1 x 3/64")

1

Create/add to Wishlist

9

1055348

Screw, Hex Head (1/4-28 x 1-3/4")

1

Create/add to Wishlist

10

1012371

Washer, Nylon (3/8 x 7/8 x 1/16")

1

Create/add to Wishlist

11

1026099

Spacer, Coved (1/4 x 11/16 x 1/2")

1

2

Create/add to Wishlist

12

1065362

Locknut (1/4-28)

1

3

$8.00

Create/add to Wishlist

13

1026907

Washer (1/4 x 1/2 x 1/16")

1

2

$8.00

Create/add to Wishlist

14

1058231

NLA - Pin, Locking

1

N/A

Create/add to Wishlist

15

1026107

Screw, Phillips Pan Head (#10-32 x 1-3/8")

1

2

Create/add to Wishlist

16

1058545

Lever, Actuator

1

Create/add to Wishlist

17

1059271

Tip, Plastic, Black

1

Create/add to Wishlist

18

40157X020

Spacer, Coved (1/4 x 1 x 9/16")

1

$8.00

Create/add to Wishlist

19

1026103

Washer, Nylon (1/4 x 1/2 x 1/32")

1

Create/add to Wishlist

20

1059374

Screw, Hex Head (1/4-28 x 3")

1

C

Create/add to Wishlist

21

1056328

Plug Button, Black (1")

1

Create/add to Wishlist

22

1043711

Clamp, Half, Non-Threaded

1

Create/add to Wishlist

23

1043712

Clamp, Half, Threaded

1

Create/add to Wishlist

24

1062787

Arm Support, Clamp On

1

Create/add to Wishlist

25

1027268

Screw, Allen Head (1/4-20 x 1")

1

2

Create/add to Wishlist

26

1013970

NLA - Lockwasher, High Collar (1/4")

1

2

N/A

Create/add to Wishlist

27

1055348

Screw, Hex Head (1/4-28 x 1-3/4")

1

Create/add to Wishlist

28

1055349

Screw, Hex Head (1/4-28 x 2")

1

D

Create/add to Wishlist

29

8881053570

Kit, Arm Pad w/ Screws, Desk Length (Pair)

2

1

E

Create/add to Wishlist

29

8881053571

Kit, Arm Pad w/ Screws, Full Length (Pair)

2

1

E

Note Code	Definition
A	Includes items 3 - 20.
B	Includes items 3 - 8, 10, 12, 14 - 17, 19, and 21 - 28.
C	Bolt On Arm.
D	Clamp On Arm.
E	Specify Upholstery Color U67 when ordering.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

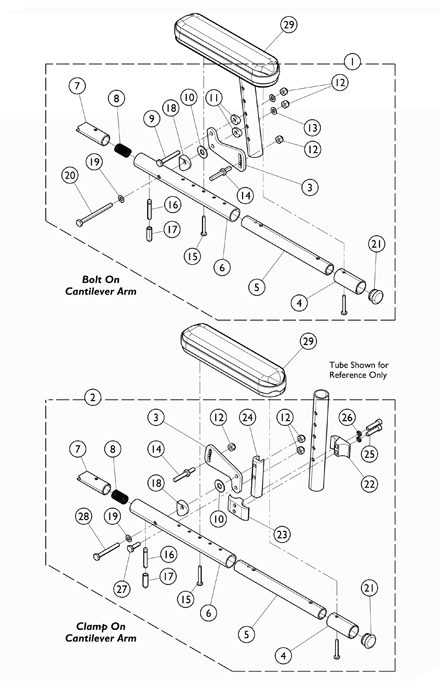

Arms - Cantilever

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Assembly Part Notes

Catalog Literature
