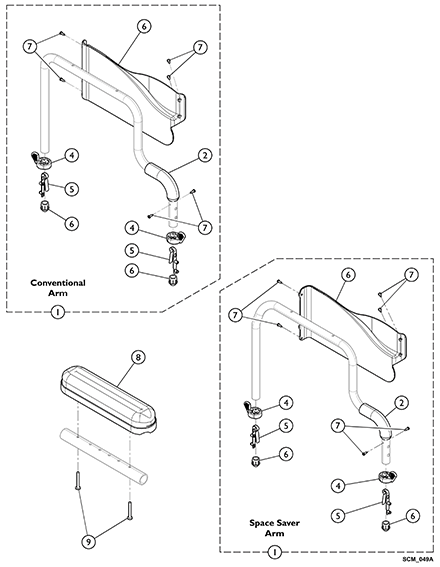

Arms - Conventional & Space Saver (XTRA) - Fixed Height

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

See Chart

Added to Cart

Arm Style		17-19" Deep Right - Black		17-19" Deep Left - Black		20-22" Deep Right - Black		20-22" Deep Left - Black
Conventional		Note-A 1108289- NLA		Note-A 1108290- NLA		Note-A 1108291- NLA		Note-A 1108292- NLA
Space-Saver		Note-B 1108293- NLA		Note-B 1108294- NLA		Note-B 1108295- NLA		Note-B 1108296- NLA

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	Due to Clothing Guard change, it is recommend (for chairs built Before 10/1/02) when only one Arm is requested the Clothing Guard Kit (p/n 1117365) be ordered also so that the arms will match.
B	Due to Clothing Guard change, it is recommend (for chairs built Before 11/25/03) when only one Arm is requested the Clothing Guard Kit (p/n 1123307) be ordered also so that the arms will match.

#9 Arm Assembly Heavy Duty Chairs

N/A

Create/add to Wishlist

See Chart

Added to Cart

Arm Style		15-18" Deep or Depth Range 10-16" to 13-19" Right - Painted		15-18" Deep or Depth Range 10-16" to 13-19" Left - Painted		19-22" Deep Right - Black		19-22" Deep Left - Black
Conventional		Note-A 8881044815- NLA		Note-A 8881044816- NLA		Note-A 1108289- NLA		Note-A 1108290- NLA
Space-Saver		Note-B ,C 8881056986		Note-B ,C 8881056987		Note-B 1108293- NLA		Note-B 1108294- NLA

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
B	Due to Clothing Guard change, it is recommend (for chairs built Before 11/25/03) when only one Arm is requested the Clothing Guard Kit (p/n 1123307) be ordered also so that the arms will match.
A	Due to Clothing Guard change, it is recommend (for chairs built Before 10/1/02) when only one Arm is requested the Clothing Guard Kit (p/n 1117365) be ordered also so that the arms will match.
C	Must order the Hand Grip separately.

#9 Arm Assembly Standard Chairs

N/A

Create/add to Wishlist

1037719

Grip, Hand, Foam (6 1/2")

Create/add to Wishlist

1037718

Grip, Hand, Foam (5 1/2")

Create/add to Wishlist

1117365

Kit, Clothing Guard, Conventional, Desk Length w/ Screws and Decals (Pair)

$78.00

Create/add to Wishlist

1123307

Kit, Clothing Guard, Space Saver, Desk Length w/ Screws and Decals (Pair)

Create/add to Wishlist

1015450

Handle, Quad Release

Create/add to Wishlist

1018225

Spring, Torsion with Button Lock

Create/add to Wishlist

1036484

Plug, Armrest, Black (3/4") (18GA)

Create/add to Wishlist

1020022

Screw, Phillips Pan Head Tap (#6-20 x 3/8")

Create/add to Wishlist

8881053570

Kit, Arm Pad w/ Screws, Desk Length (Pair)

Create/add to Wishlist

1055949

Package, Screw, Phillips Pan Head (#10-32 x 1-3/8")

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Used with Space Saver Arms.
B	Used with Conventional Arms.
C	Clothing Guards not sold individually, includes Clothing Guard, Screws, and Decals.
D	Specify Upholstery Color U67 when ordering.

Catalog Literature

Parts Books for MVP® / MVP® jr. (After 10/15/01) Xtra™ (After 8/31/04)
