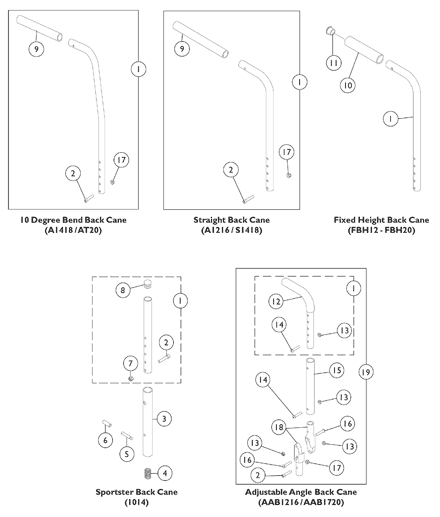

Back Cane Style	Description	Part Number
A1418	10 Degree Bend Cane w/ Push Handle 14-18" High	Note-A 1094586
AT20	10 Degree Bend Cane w/ Push Handle 20" High	Note-A 1094587
A1216	Straight Cane w/ Push Handle 12-16" High	Note-A 1094925
S1418	Straight Cane w/ Push Handle 14-18" High	Note-A 1094926
FBH12	Straight Fixed Back Cane 12" High	Note-B 1107526- NLA
FBH14	Straight Fixed Back Cane 14" High	Note-B 1107527- NLA
FBH16	Straight Fixed Back Cane 16" High	Note-B 1059263- NLA
FBH18	Straight Fixed Back Cane 18" High	Note-B 1059265
FBH20	Straight Fixed Back Cane 20" High	Note-B 1059249
1014	Sportster Cane 10-14" High	Note-C 1094588
AAB1216 / AAB1720	Adjustable Angle Back Cane 12-16" & 17-20" High	Note-D 1113533

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	Includes Back Cane and items 2,9, & 17.
C	Includes Back Cane and items 2,7, & 8.
B	Items 10 and 11 not included, must be ordered separately.
D	Includes Back Cane and items 12-14.

#1 Back Canes

N/A

Create/add to Wishlist

2

1003545

Screw, Socket Head (1/4-20 x 1-1/4")

1

Create/add to Wishlist

3

1107516

NLA - Tube, Rear Upright, Black

1

N/A

A

Create/add to Wishlist

4

1011511

Spring, Compression (5/8 x 1 x 3/64")

1

Create/add to Wishlist

5

1058545

Lever, Actuator

1

Create/add to Wishlist

6

1059271

Tip, Plastic, Black

1

Create/add to Wishlist

7

1025195

Locknut (1/4-20)

1

$8.00

Create/add to Wishlist

8

1027097

Plug Button, Black (3/4")

1

$8.00

Create/add to Wishlist

9

1006229

Grip, Foam (8")

1

B

Create/add to Wishlist

10

1061484

Grip, Handle, Foam, Black (5")

1

C

Create/add to Wishlist

11

1056328

Plug Button, Black (1")

1

Create/add to Wishlist

12

1028429

Grip, Foam (6")

1

Create/add to Wishlist

13

1025765

Locknut (1/4-28)

1

4

Create/add to Wishlist

14

1055309

Screw, Socket Button Head (1/4-28 x 1-1/4")

1

2

Create/add to Wishlist

15

1113508

Cane, Back, Black (12 - 16" H)

1

D

Create/add to Wishlist

15

1113509

Cane, Back, Black (17 - 20" H)

1

E

Create/add to Wishlist

16

1059284

Screw, Socket Button Head (1/4-28 x 1-1/4")

1

2

Create/add to Wishlist

17

1025736

Locknut (1/4-20)

1

$8.00

Create/add to Wishlist

18

1114702

NLA - Insert, Back Cane, Black

1

2

N/A

Create/add to Wishlist

19

1113510

Adjustable Angle Back Cane Assembly

1

F ,D

Create/add to Wishlist

19

1113511

Adjustable Angle Back Cane Assembly

1

E ,F

Note Code	Definition
A	Sportster Cane Only
B	Used on Straight and 10 Degree Back Canes
C	Used on Fixed Height Back Canes
D	12-16" High
E	17-20" High
F	Includes items 1,2,12-18
