Frames - Front - Non Heavy Duty Chairs

Print this page

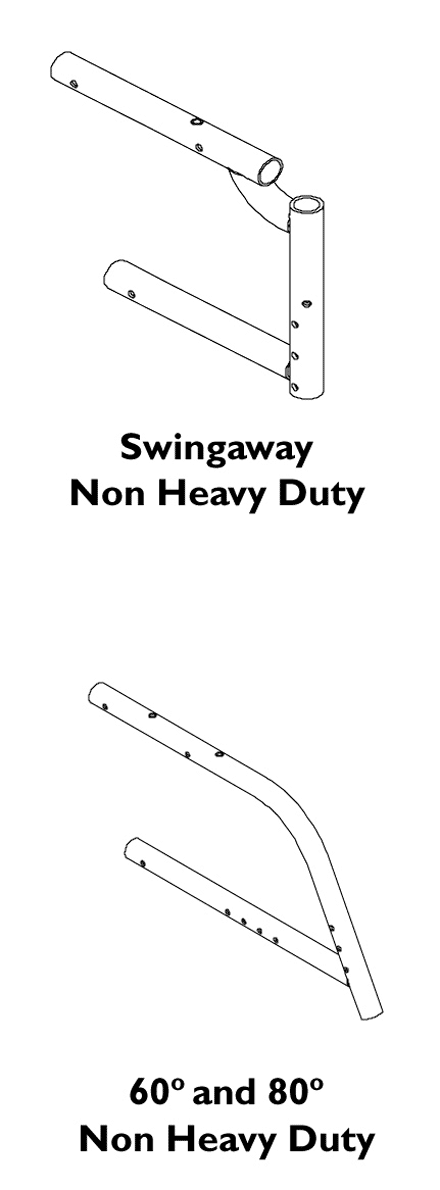

Front Frames - Non Heavy Duty Chairs

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

See Chart

Added to Cart

Chair Depth		Swingaway Frame Right		Swingaway Frame Left		60 Degree Fixed Frame Right/Left		80 Degree Fixed Frame Right/Left		80 Degree 1" Short Fixed Frame Right/Left
12"		8881018533- NLA		8881018534- NLA		8881068512- NLA		8881038779- NLA		8881106887- NLA
13"		8881018533- NLA		8881018534- NLA		8881068512- NLA		8881038779- NLA		8881106887- NLA
14"		8881018533- NLA		8881018534- NLA		8881068512- NLA		8881038779- NLA		8881106887- NLA
15"		8881018535- NLA		8881018536- NLA		8881068513- NLA		8881038780- NLA		8881038779- NLA
16"		8881018537		8881018538		8881068514- NLA		8881038781- NLA		8881038780- NLA
17"		8881018539- NLA		8881018540- NLA		8881068515- NLA		8881038782- NLA		8881038781- NLA
18"		8881018541		8881018542		8881068516- NLA		8881038783- NLA		8881038782- NLA
19"		8881107878- NLA		8881107879- NLA		8881107896- NLA		8881107912- NLA		8881107911- NLA
20"		8881107880- NLA		8881107881- NLA		8881107897- NLA		8881107913- NLA		8881107912- NLA
21"		8881112508- NLA		8881112509- NLA		8881112520- NLA		8881112530- NLA		8881107913- NLA
22"		8881112510- NLA		8881112511- NLA		8881112521- NLA		8881112531- NLA		8881112530- NLA

Create/add to Wishlist

Create/add to Wishlist

Front Frames - Non Heavy Duty Chairs with Specific Depth

N/A

N/A

N/A

See Chart

Added to Cart

Depth Range		Swingaway Frame Right		Swingaway Frame Left		60 Degree Fixed Frame Right/Left		80 Degree Fixed Frame Right/Left		80 Degree 1" Short Fixed Frame Right/Left
9-15"		8881018533- NLA		8881018534- NLA		8881068512- NLA		8881038779- NLA		8881106887- NLA
10-16"		8881018535- NLA		8881018536- NLA		8881068513- NLA		8881038780- NLA		8881038779- NLA
11-17"		8881018537		8881018538		8881068514- NLA		8881038781- NLA		8881038780- NLA
12-18"		8881018539- NLA		8881018540- NLA		8881068515- NLA		8881038782- NLA		8881038781- NLA
13-19"		8881018541		8881018542		8881068516- NLA		8881038783- NLA		8881038782- NLA

Create/add to Wishlist

Create/add to Wishlist

Front Frames - Non Heavy Duty Chairs with Depth Range

N/A

N/A

N/A

Catalog Literature

Parts Books for MVP® / MVP® jr. (After 10/15/01) Xtra™ (After 8/31/04)
