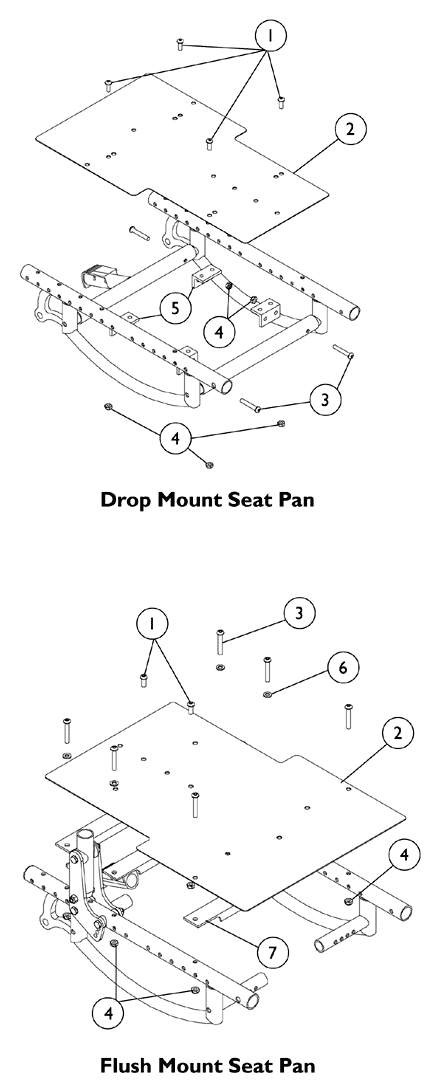

Seat Pan & Hardware

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1055304

Screw, Socket Button Head (1/4-28 x 5/8")

Create/add to Wishlist

See Chart

Added to Cart

Seat Mounting Type		10" Wide		11" Wide		12" Wide		13" Wide		14" Wide		15" Wide		16" Wide
Drop Mount		N/A		N/A		1104636- NLA		1104637- NLA		1104638- NLA		1104639- NLA		1104640- NLA
Flush Mount		1104636- NLA		1104637- NLA		1104638- NLA		1104639- NLA		1104640- NLA		1104641- NLA		1104642- NLA

Create/add to Wishlist

#2 Seat Pan w/ Hook and Loop Fastener

N/A

Create/add to Wishlist

1086270

NLA - Hook Fastener with Adhesive Back (2" W x 9-1/2" L)

N/A

Create/add to Wishlist

1086346

Loop Fastener (2" Wide)

Create/add to Wishlist

1083099

Screw, Socket Button Head (1/4-28 x 1-1/2")

Create/add to Wishlist

1025765

Locknut (1/4-28)

Create/add to Wishlist

1108536

NLA - Bracket, Seat Drop, Black

N/A

Create/add to Wishlist

1026907

Washer (1/4 x 1/2 x 1/16")

$8.00

Create/add to Wishlist

See Chart

Added to Cart

10" Wide		11" Wide		12" Wide		13" Wide		14" Wide		15" Wide		16" Wide
1104496- NLA		1104497		1104498		1104499		1104500		1104501		1104502- NLA

Create/add to Wishlist

#7 Seat Pan Supports

N/A

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Not Shown
B	Required for Flush Mount Only
