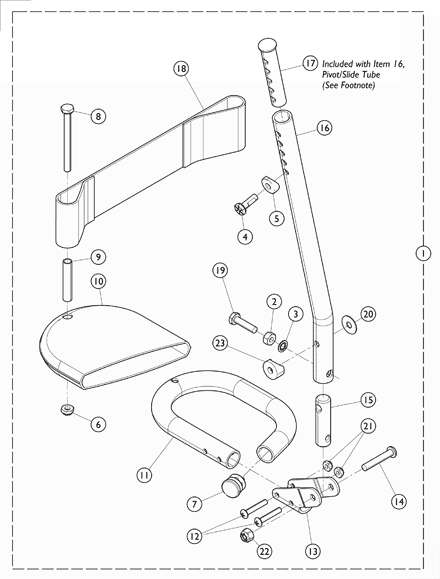

Front Riggings - Footplates - Tubular
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes |
|---|
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | 14" Elevating Legrest; 15" Non-Tapered and 16-22" Tapered Footrest. |
| B | 14-15" Elevating Legrest and Non-Tapered Footrest; 16-17" Tapered Footrest. |
| C | 16-20" Non-Tapered Footrest |
| D | 16-20" Elevating Legrest and Non-Tapered Footrest; 18-22" Tapered Footrest. |
| E | Pivot/Slide Tube (Item 16) includes the Threaded Insert (Item 17) which can be ordered separately and is identified in the drawing. Item 17 was revised from 3 to 5 Holes as of 8/15/03 and is backward compatible and does not require ordering in pairs. |
| F | Includes items 2 - 23. |
| G | Part number is no longer available individually. See item 1 and order the complete Tubular Footplate Assembly. |
