Straight Slide Tube (9-7/8")	Right	Left
12-13" Wide (4-1/4" Footplate)	1060430	1060431
14-15" Wide (5-1/4" Footplate)	1060432	1060433
16-20" Wide (6-1/4" Footplate)	1062572	1062573
18-20" Wide (7-1/4" Footplate)	1068620	1068621

Create/add to Wishlist

60 Degree, 60 Degree MFX, 70 Degree Non-Tapered, & ELR's Assembly

N/A

A

Create/add to Wishlist

1

See Chart

Added to Cart

ALPT Straight Pivot Tube (11-7/8")	Right	Left
12-13" Wide (4-1/4" Footplate)	1062576- NLA	1062577- NLA
14-15" Wide (5-1/4" Footplate)	1060440- NLA	1060441
16-17" Wide (6-1/4" Footplate)	1062578	1062579
18-20" Wide (7-1/4" Footplate)	1068622	1068623

Create/add to Wishlist

70 Degree Assembly

N/A

A

Create/add to Wishlist

1

See Chart

Added to Cart

Straight Pivot Tube (9-7/8")	Right	Left
16" Wide (4-1/4" Footplate)	1060430	1060431
17-18" Wide (5-1/4" Footplate)	1060432	1060433
19-20" Wide (6-1/4" Footplate)	1062572	1062573

ALPT Straight Pivot Tube (11-7/8")	Right	Left
16" Wide (4-1/4" Footplate)	1062576- NLA	1062577- NLA
17-18" Wide (5-1/4" Footplate)	1060440- NLA	1060441
19-20" Wide (6-1/4" Footplate)	1062578	1062579

Create/add to Wishlist

70 Degree Tapered Assembly

N/A

A

Create/add to Wishlist

1

See Chart

Added to Cart

No Pivot Tube Bolts Through Support	Right	Left
12-13" Wide (4-1/4" Footplate)	1060436- NLA	1060437
14-15" Wide (5-1/4" Footplate)	1060438	1060439
16-20" Wide (6-1/4" Footplate)	1062570	1062571
18-20" Wide (7-1/4" Footplate)	1068618	1068619

Create/add to Wishlist

90 Degree and 70 Degree MFX Assembly

N/A

A

Create/add to Wishlist

2

1113571

Footplate, Adjustable Angle, Small, Black (3-1/4" W x 8" L)

1

C

Create/add to Wishlist

2

1113572

Footplate, Adjustable Angle, Medium, Black (4-1/4" W x 8" L)

1

$101.00

C

Create/add to Wishlist

2

1113573

Footplate, Adjustable Angle, Large, Black (5-1/4" W x 8" L)

1

$101.00

C

Create/add to Wishlist

2

1113574

Footplate, Adjustable Angle, Extra Large, Black (6-1/4" W x 8" L)

1

$75.00

C

Create/add to Wishlist

3

1120384

NLA - Tube, Pivot/Slide, Straight - Alum. (9-7/8" L)

1

N/A

Create/add to Wishlist

3

1120385

Tube, Pivot/Slide, Straight - Black (11-7/8" L)

1

Create/add to Wishlist

4

1052102

Hinge, Footplate - Right

1

Create/add to Wishlist

4

1052103

Hinge, Footplate - Left

1

Create/add to Wishlist

5

1058517

Clamp, Footplate

1

B

Create/add to Wishlist

6

1082686

Nut, Barrel, Hex Head (1/4-20 x 11/16")

1

2

B

Create/add to Wishlist

7

1048816

Screw, Nylon Adjustment (1/2-13 x 7/8")

1

Create/add to Wishlist

8

7930321

NLA Package, Screw, Socket Button Head (1/4-20 x 1-7/8")

25

1

N/A

Create/add to Wishlist

9

1029545

Screw, Socket Flat Head (1/4-20 x 3/4")

1

2

B

Create/add to Wishlist

10

1026900

Washer (1/4 x 23/32 x 1/16")

1

Create/add to Wishlist

11

7930313

Package, Washer, Nylon (5/16 x 7/8 x 1/8")

25

1

$55.00

Create/add to Wishlist

12

1025457

Spacer, Coved (1/4 x 3/4 x 11/32")

1

Create/add to Wishlist

13

1026907

Washer (1/4 x 1/2 x 1/16")

1

$8.00

Create/add to Wishlist

14

7930333

Locknut (1/4-20)

25

1

$55.00

Note Code	Definition
A	Includes items 2 - 14.
B	Due to a hardware change, chairs manufactured before 8/1999, items 5, 6, and 14 must be ordered together.
C	Footplate was redesigned 9/2/2008 with rounder corners and accessory holes changed from 8 to 4. It is recommended to replace in pairs to match sides.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

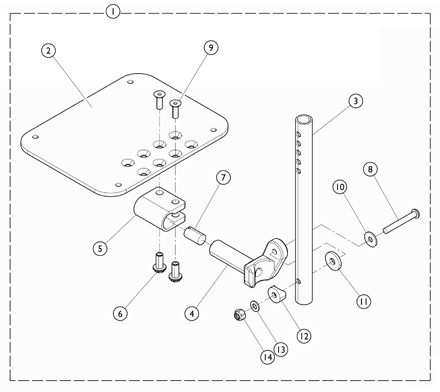

Front Riggings - Pivot/Slide Tube & AT5543 Adjustable Angle Footplates
