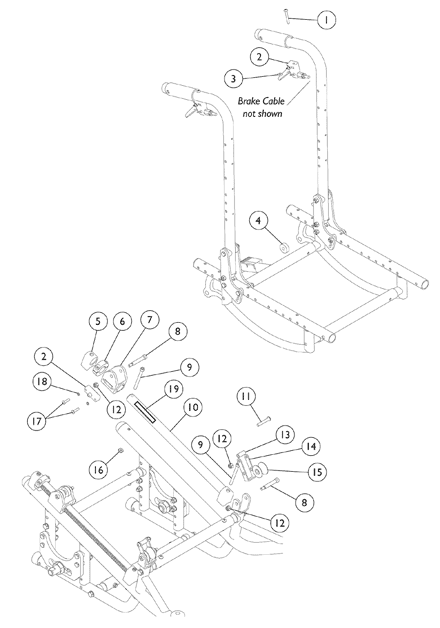

Tilt Hardware

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1026107	Screw, Phillips Pan Head (#10-32 x 1-3/8")	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1161550	NLA - Cable and Brake Assembly	1	2	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1086207	Nut, Square (#10-32)	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1104627	NLA - Spacer, Hinge Seat Frame, Black (5/16 x 1 x 7/16")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1104645	NLA - Stand-Off, Shaft	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1083088	Collar, Tilt Lock Out (7/8")	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1080622	NLA - Housing, Bearing	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1071736	Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20)	1	4			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1083177	NLA - Screw, Socket Head (1/4-28 x 2-7/8")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1079554	NLA - Rack, Gear, Grey Aluminum	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1008495	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1025736	Locknut (1/4-20)	1	6	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1075146	NLA - Sleeve (1/4-10 x 7/8 x 1/6" O.D.)	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1080620	NLA - Roller, Link	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	1083098	NLA - Roller w/ Bushings	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	1025765	Locknut (1/4-28)	1	4			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	1003645	Screw, Socket Button Head (#10-32 x 3/4")	1	4			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
18	1028527	NLA - Washer, Lock (3/16 x 5/16 x 1/32")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1104628	NLA - Hardware, Tilt	1	1	N/A	A ,B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
19	1085303	NLA - Decal, Graduated Tilt - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
19	1085304	NLA - Decal, Graduated Tilt - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Not Shown
B	Includes items 1-18.
C	Includes 1080623 and Item 3 (1086207).

Catalog Literature

Parts Books for Solara® jr.
