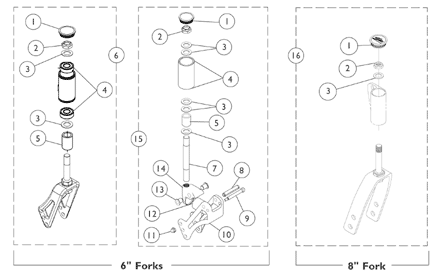

Forks w/ Hardware
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
|---|---|---|---|---|---|---|---|
| 2 | 1025737 | Locknut (1/2-20) | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 3 | 1026174 | Washer (1/2 x 7/8 x 3/64") | 1 | 6 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 4 | 40117X021 | Bearing (1/2" I.D. x 1-1/8" O.D.) | 1 | 2 |
$16.00 |
A |
Create/add to WishlistCreate/add to Wishlist |
| 5 | 1046495 | Spacer (1/2 x 3/4 x 1") | 1 | 1 | B |
Create/add to WishlistCreate/add to Wishlist |
|
| 6 | 1097039 | NLA - Fork with Hardware (6") | 1 | 1 | N/A | C |
Create/add to WishlistCreate/add to Wishlist |
| 6 | 1097040 | NLA - Fork, Extended with Hardware (6") | 1 | 1 | N/A | D |
Create/add to WishlistCreate/add to Wishlist |
| 7 | 1024682 | NLA - Stem, Fork, Black | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 7 | 1046446 | NLA - Fork Stem (1" Extension) | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 8 | 1088647 | NLA - Pin, Slotted (5/16 x 1-3/4") | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 9 | 1030957 | NLA - Screw, Shoulder Hex Socket Head (1/4 x 1-3/4", #10-24) | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 10 | 1088570 | NLA - Fork, Suspension, Front | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 11 | 1100857 | NLA - Nut, Hex with Nylon Cap (#10-24) | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 12 | 1100507 | NLA - Kit, Polyurethane Spacer | 2 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 13 | 1093978 | NLA - Flange (5/16" I.D.) | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 14 | 1088571 | NLA - Mount, Suspension Fork | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 15 | 1098173 | NLA - Fork, Suspension with Hardware (6") | 1 | 1 | N/A | E |
Create/add to WishlistCreate/add to Wishlist |
| 15 | 1098174 | NLA - Fork, Extended Suspension w/ Hardware (6") | 1 | 1 | N/A | F |
Create/add to WishlistCreate/add to Wishlist |
| 16 | 1065629 | Kit, Fork w/ Hardware (6 x 2" and 8" Casters) | 1 | 1 | G |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | Item 4 Bearings are Not Included in Fork Assemblies. |
| B | Spacer required for Forks w/ extended stems only (Part nos. 1097040 & 1098174). |
| C | Includes Fork and items 1-3. |
| D | Includes Fork and items 1-3, 5. |
| E | Includes items 1-3,7-14. |
| F | Includes items 1-3,5,7-14. |
| G | Includes Fork and items 1-3. |
