EQUIPMENT CA Site

1

1063207

NLA - Kit, Crossbrace Less Seat Rail Hardware

1

N/A

A

Create/add to Wishlist

2

1065362

Locknut (1/4-28)

1

8

$8.00

Create/add to Wishlist

3

1056328

Plug Button, Black (1")

1

4

Create/add to Wishlist

4

1055348

Screw, Hex Head (1/4-28 x 1-3/4")

1

2

Create/add to Wishlist

5

1016263

Spacer, Coved (3/4 x 1 x 1/2")

1

4

Create/add to Wishlist

6

1016301

Washer, Nylon (5/16 x 7/8 x 1/8")

1

3

Create/add to Wishlist

7

1026907

Washer (1/4 x 1/2 x 1/16")

1

4

$8.00

Create/add to Wishlist

8

1055298

Screw, Hex Head (1/4-28 x 1-5/8")

1

4

Create/add to Wishlist

9

1012172

NLA - Clamp, Saddle

1

2

N/A

Create/add to Wishlist

10

1025705

NLA - Screw, Hex Head (5/16-24 x 3-1/4")

1

N/A

Create/add to Wishlist

11

1025704

Washer, Flat (5/16 x 5/8 x 1/16")

1

2

Create/add to Wishlist

12

1025730

Locknut (5/16-24)

1

Create/add to Wishlist

13

1055349

Screw, Hex Head (1/4-28 x 2")

1

2

Create/add to Wishlist

14

1026162

Spacer (1/4 x 3/8 x 11/32")

1

2

Create/add to Wishlist

15

1026903

NLA - Tab, Tie Down

1

2

N/A

Create/add to Wishlist

16

1035900

Decal, Transportation

1

Create/add to Wishlist

17

1055347

Screw, Hex Head (1/4-28 x 1-1/2")

1

2

Create/add to Wishlist

1141633

Cord, Nylon (6-1/2 ft.)

1

B

Create/add to Wishlist

1029412

Lock, Cord, Black

1

B

Create/add to Wishlist

18

1063668

NLA - Stop, Pivot Link, Black

1

2

N/A

G

Create/add to Wishlist

18

1063666

NLA - Stop, Pivot Link, Black

1

2

N/A

C

Create/add to Wishlist

18

1063667

NLA - Stop, Pivot Link, Black

1

2

N/A

F

Create/add to Wishlist

19

1128752

NLA - Link, Pivot, Black (12 - 13" W)

1

2

N/A

G

Create/add to Wishlist

19

1126169

NLA - Link, Pivot, Black (14 - 16" W)

1

2

C

Create/add to Wishlist

19

1124938

NLA - Link, Pivot, Black (17 - 19" W)

1

2

N/A

D

Create/add to Wishlist

19

1126170

Link, Pivot, Black (20 - 22" W)

1

2

E

Create/add to Wishlist

20

1012180

Bracket, Pivot, Black

1

2

G

Create/add to Wishlist

20

1124937

NLA - Bracket, Pivot, Black

1

2

N/A

H

Create/add to Wishlist

21

See Chart

Added to Cart

Chair Width	12"	13"	14"	15"	16"
Right/Left	1063200- NLA	1063201- NLA	1063202- NLA	1063203- NLA	1063204

Chair Width	17"	18"	19"	20"
Right/Left	1063205	1063206	1127126- NLA	1127127- NLA

Create/add to Wishlist

#21 Crossbraces Less Seat Rail

N/A

Note Code	Definition
A	Includes items 2-17 plus not shown items Nylon Cord and Cord Lock.
B	Not Shown
C	14-16" wide
D	17-19" wide
E	20" wide
F	17-20" wide
G	12-13" wide
H	14-20" wide

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

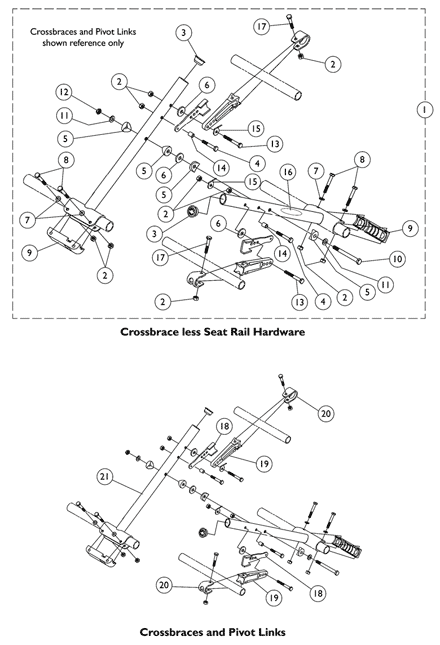

Crossbraces and Hardware - Less Seat Rail
