Wheel Locks - Undermount

Print this page

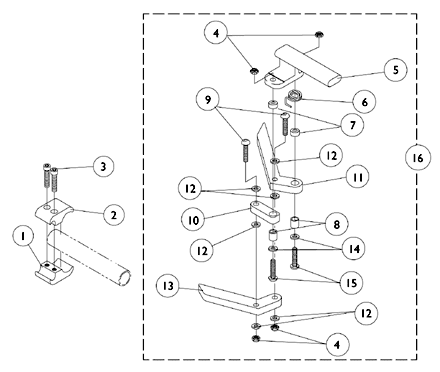

Undermount Wheel Lock

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1026096	Clamp, Wheel Lock, Threaded (1")	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1026097	Clamp, Wheel Lock, Non-Threaded (1")	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1027268	Screw, Allen Head (1/4-20 x 1")	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	7930334	NLA - Locknut (1/4-28)	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1037120	NLA - Bracket, Mounting, Black - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1037121	NLA - Bracket, Mounting, Black - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1036519	NLA - Spring, Torsion - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1036520	NLA - Spring, Torsion - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1026104	NLA - Spacer	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1005844	NLA - Bushing	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1055307	NLA - Screw, Allen Button Head (1/4-28 x 1")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1025188	NLA - Link, Wheel Lock, Black	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1024962	NLA - Handle, Wheel Lock, Black	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1026103	Washer, Nylon (1/4 x 1/2 x 1/32")	1	6			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1024961	NLA - Shoe, Wheel Lock	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1025728	Washer (1/4 x 1/2 x 1/32")	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	1059284	Screw, Socket Button Head (1/4-28 x 1-1/4")	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	1036647	NLA - Wheel Lock, Undermount - Right	1	1	N/A	A ,B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	1036648	NLA - Wheel Lock, Undermount - Left	1	1	N/A	A ,B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	On the Rocket, this wheel lock can only be used on a Fixed Front Frame model.
B	Includes items 4 - 15.

Catalog Literature

Parts Books for Comet™ Rocket
