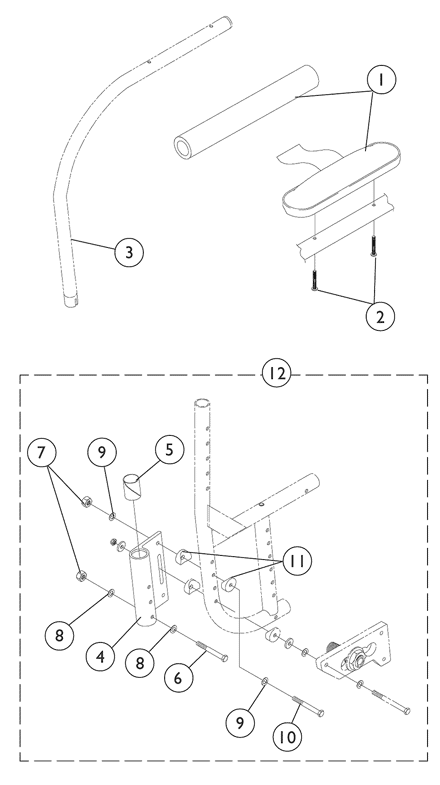

Arms - Half Arms - AT99
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
|---|---|---|---|---|---|---|---|
| 1 | 1032244 | Grip, Foam Hand (9" L) | 1 | 1 |
Create/add to WishlistCreate/add to Wishlist |
||
| 2 | 1055205 | Package, Screw Phillips Pan Head (#10-32 x 1-3/8") | 2 | 1 |
Create/add to WishlistCreate/add to Wishlist |
||
| 3 | 1032202 | Half Arm Tube - Right | 1 | 1 |
Create/add to WishlistCreate/add to Wishlist |
||
| 3 | 1032203 | Half Arm Tube - Left | 1 | 1 |
Create/add to WishlistCreate/add to Wishlist |
||
| 4 | 1032206 | Socket, Arm, Rear - Right | 1 | 1 |
Create/add to WishlistCreate/add to Wishlist |
||
| 4 | 1032207 | Socket, Arm, Rear - Left | 1 | 1 |
Create/add to WishlistCreate/add to Wishlist |
||
| 5 | 1018687 | Sleeve, Bearing | 1 | 1 |
Create/add to WishlistCreate/add to Wishlist |
||
| 6 | 1055348 | Screw, Hex Head (1/4-28 x 1-3/4") | 1 | 1 |
Create/add to WishlistCreate/add to Wishlist |
||
| 7 | 1065362 | Locknut (1/4-28) | 1 | 3 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 8 | 1026907 | Washer (1/4 x 1/2 x 1/16") | 1 | 2 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 9 | 1026900 | Washer (1/4 x 23/32 x 1/16") | 1 | 2 |
Create/add to WishlistCreate/add to Wishlist |
||
| 10 | 1055349 | Screw, Hex Head (1/4-28 x 2") | 1 | 1 |
Create/add to WishlistCreate/add to Wishlist |
||
| 11 | 40157X020 | Spacer, Coved (1/4 x 1 x 9/16") | 1 | 2 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 12 | 1032195 | Kit, Half Arm Mounting Hardware (Pair) | 2 | 1 | B |
Create/add to WishlistCreate/add to Wishlist |
|
| 1059656 | Instruction Sheet, Half Arms | 1 | 1 | C |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | Specify U67 upholstery color when ordering. |
| B | Includes items 4-11 and Instruction Sheet. |
| C | Not Shown |
