EQUIPMENT CA Site

1

1028399

NLA - Strap, Wheel Lock

1

N/A

Create/add to Wishlist

2

1025765

Locknut (1/4-28)

1

5

Create/add to Wishlist

3

1020363

NLA - Spacer (1/4 x 1/2 x 1/2")

1

N/A

Create/add to Wishlist

4

1026103

Washer, Nylon (1/4 x 1/2 x 1/32")

1

6

Create/add to Wishlist

5

1016650

NLA - Spring, Torsion - Right

1

N/A

Create/add to Wishlist

5

1016651

NLA - Spring, Torsion - Left

1

N/A

Create/add to Wishlist

6

1055306

NLA - Screw, Button Head Cap (1/4-28 x 7/8")

1

N/A

Create/add to Wishlist

7

1028411

NLA - Spacer (1/4 x 1/2 x 5/32")

1

N/A

Create/add to Wishlist

8

1018727

NLA - Link, Stop, Black

1

N/A

Create/add to Wishlist

9

1006490

Tip, Plastic, Black

1

Create/add to Wishlist

10

1038344

NLA - Handle, Wheel Lock, Black - Right

1

N/A

Create/add to Wishlist

10

1038345

NLA - Handle, Wheel Lock, Black - Left

1

N/A

Create/add to Wishlist

11

1026829

NLA - Bracket Assembly, Black - Right

1

N/A

Create/add to Wishlist

11

1026830

NLA - Bracket Assembly, Black - Left

1

N/A

Create/add to Wishlist

12

1015857

Shoe, Wheel Lock

1

Create/add to Wishlist

13

1055304

Screw, Socket Button Head (1/4-28 x 5/8")

1

2

Create/add to Wishlist

14

1059284

Screw, Socket Button Head (1/4-28 x 1-1/4")

1

Create/add to Wishlist

15

1013971

Washer, Nylon (1/4 x 7/16 x 5/64")

1

Create/add to Wishlist

16

1039323

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
1	NLA - Screw, Button Head Cap (1/4-28 x 7/8")	1	1
2	Screw, Socket Button Head (1/4-28 x 1-1/4")	1	1
3	NLA - Spacer (1/4 x 1/2 x 1/2")	1	1
4	Locknut (1/4-28)	1	5
5	NLA - Spring, Torsion - Right	1	1
6	Shoe, Wheel Lock	1	1
7	Washer, Nylon (1/4 x 7/16 x 5/64")	1	1
8	Washer, Nylon (1/4 x 1/2 x 1/32")	1	7
9	Screw, Socket Button Head (1/4-28 x 5/8")	1	2
10	NLA - Handle, Wheel Lock, Black - Right	1	1
11	Tip, Plastic, Black	1	1
12	NLA - Link, Stop, Black	1	1
13	NLA - Bracket Assembly, Black - Right	1	1
14	NLA - Spacer (1/4 x 1/2 x 5/32")	1	1
15	NLA - Strap, Wheel Lock	1	1
1	Locknut (1/4-28)	1	5
2	Screw, Socket Button Head (1/4-28 x 5/8")	1	2
3	NLA - Handle, Wheel Lock, Black - Right	1	1
4	Tip, Plastic, Black	1	1
5	NLA - Link, Stop, Black	1	1
6	NLA - Spacer (1/4 x 1/2 x 5/32")	1	1
7	NLA - Strap, Wheel Lock	1	1
8	NLA - Screw, Button Head Cap (1/4-28 x 7/8")	1	1
9	Screw, Socket Button Head (1/4-28 x 1-1/4")	1	1
10	NLA - Spacer (1/4 x 1/2 x 1/2")	1	1
11	NLA - Bracket Assembly, Black - Right	1	1
12	Washer, Nylon (1/4 x 1/2 x 1/32")	1	7
13	NLA - Spring, Torsion - Right	1	1
14	Shoe, Wheel Lock	1	1
15	Washer, Nylon (1/4 x 7/16 x 5/64")	1	1
1	Locknut (1/4-28)	1	5
2	Screw, Socket Button Head (1/4-28 x 5/8")	1	2
3	NLA - Handle, Wheel Lock, Black - Right	1	1
4	Tip, Plastic, Black	1	1
5	NLA - Link, Stop, Black	1	1
6	NLA - Spacer (1/4 x 1/2 x 5/32")	1	1
7	NLA - Strap, Wheel Lock	1	1
8	NLA - Screw, Button Head Cap (1/4-28 x 7/8")	1	1
9	Screw, Socket Button Head (1/4-28 x 1-1/4")	1	1
10	NLA - Spacer (1/4 x 1/2 x 1/2")	1	1
11	NLA - Bracket Assembly, Black - Right	1	1
12	Washer, Nylon (1/4 x 1/2 x 1/32")	1	7
13	NLA - Spring, Torsion - Right	1	1
14	Shoe, Wheel Lock	1	1
15	Washer, Nylon (1/4 x 7/16 x 5/64")	1	1
1	NLA - Strap, Wheel Lock	1	1
2	Locknut (1/4-28)	1	5
3	NLA - Spacer (1/4 x 1/2 x 1/2")	1	1
4	Washer, Nylon (1/4 x 1/2 x 1/32")	1	7
5	NLA - Spring, Torsion - Right	1	1
6	NLA - Screw, Button Head Cap (1/4-28 x 7/8")	1	1
7	NLA - Spacer (1/4 x 1/2 x 5/32")	1	1
8	NLA - Link, Stop, Black	1	1
9	Tip, Plastic, Black	1	1
10	NLA - Handle, Wheel Lock, Black - Right	1	1
11	NLA - Bracket Assembly, Black - Right	1	1
12	Shoe, Wheel Lock	1	1
13	Screw, Socket Button Head (1/4-28 x 5/8")	1	2
14	Screw, Socket Button Head (1/4-28 x 1-1/4")	1	1
15	Washer, Nylon (1/4 x 7/16 x 5/64")	1	1
2	Locknut (1/4-28)	1	5
3	NLA - Spacer (1/4 x 1/2 x 1/2")	1	1
4	Washer, Nylon (1/4 x 1/2 x 1/32")	1	7
5	NLA - Spring, Torsion - Right	1	1
6	NLA - Screw, Button Head Cap (1/4-28 x 7/8")	1	1
7	NLA - Spacer (1/4 x 1/2 x 5/32")	1	1
8	NLA - Link, Stop, Black	1	1
9	Tip, Plastic, Black	1	1
10	NLA - Handle, Wheel Lock, Black - Right	1	1
11	NLA - Bracket Assembly, Black - Right	1	1
12	Shoe, Wheel Lock	1	1
13	Screw, Socket Button Head (1/4-28 x 5/8")	1	2
14	Screw, Socket Button Head (1/4-28 x 1-1/4")	1	1
15	Washer, Nylon (1/4 x 7/16 x 5/64")	1	1
16	NLA - Strap, Wheel Lock	1	1
3	NLA - Strap, Wheel Lock	1	1
4	NLA - Screw, Button Head Cap (1/4-28 x 7/8")	1	1
5	Screw, Socket Button Head (1/4-28 x 1-1/4")	1	1
6	NLA - Spacer (1/4 x 1/2 x 1/2")	1	1
7	NLA - Spacer (1/4 x 1/2 x 5/32")	1	1
8	Locknut (1/4-28)	1	5
9	NLA - Bracket Assembly, Black - Right	1	1
10	NLA - Link, Stop, Black	1	1
11	NLA - Handle, Wheel Lock, Black - Right	1	1
12	Tip, Plastic, Black	1	1
13	Screw, Socket Button Head (1/4-28 x 5/8")	1	2
14	Shoe, Wheel Lock	1	1
15	Washer, Nylon (1/4 x 7/16 x 5/64")	1	1
16	Washer, Nylon (1/4 x 1/2 x 1/32")	1	7
17	NLA - Spring, Torsion - Right	1	1
10	NLA - Handle, Wheel Lock, Black - Right	1	1
11	NLA - Bracket Assembly, Black - Right	1	1
12	Shoe, Wheel Lock	1	1
13	Screw, Socket Button Head (1/4-28 x 5/8")	1	2
14	Screw, Socket Button Head (1/4-28 x 1-1/4")	1	1
15	Washer, Nylon (1/4 x 7/16 x 5/64")	1	1
1	NLA - Strap, Wheel Lock	1	1
2	Locknut (1/4-28)	1	5
3	NLA - Spacer (1/4 x 1/2 x 1/2")	1	1
4	Washer, Nylon (1/4 x 1/2 x 1/32")	1	7
5	NLA - Spring, Torsion - Right	1	1
6	NLA - Screw, Button Head Cap (1/4-28 x 7/8")	1	1
7	NLA - Spacer (1/4 x 1/2 x 5/32")	1	1
8	NLA - Link, Stop, Black	1	1
9	Tip, Plastic, Black	1	1

NLA - Hill Holder Assembly w/ Hardware - Right

1

N/A

B

Create/add to Wishlist

16

1039324

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
1	NLA - Screw, Button Head Cap (1/4-28 x 7/8")	1	1
2	Screw, Socket Button Head (1/4-28 x 1-1/4")	1	1
3	NLA - Spacer (1/4 x 1/2 x 1/2")	1	1
4	Locknut (1/4-28)	1	5
5	NLA - Spring, Torsion - Left	1	1
6	Shoe, Wheel Lock	1	1
7	Washer, Nylon (1/4 x 7/16 x 5/64")	1	1
8	Washer, Nylon (1/4 x 1/2 x 1/32")	1	7
9	Screw, Socket Button Head (1/4-28 x 5/8")	1	2
10	NLA - Handle, Wheel Lock, Black - Left	1	1
11	Tip, Plastic, Black	1	1
12	NLA - Link, Stop, Black	1	1
13	NLA - Bracket Assembly, Black - Left	1	1
14	NLA - Spacer (1/4 x 1/2 x 5/32")	1	1
15	NLA - Strap, Wheel Lock	1	1
1	Locknut (1/4-28)	1	5
2	Screw, Socket Button Head (1/4-28 x 5/8")	1	2
3	NLA - Handle, Wheel Lock, Black - Left	1	1
4	Tip, Plastic, Black	1	1
5	NLA - Link, Stop, Black	1	1
6	NLA - Spacer (1/4 x 1/2 x 5/32")	1	1
7	NLA - Strap, Wheel Lock	1	1
8	NLA - Screw, Button Head Cap (1/4-28 x 7/8")	1	1
9	Screw, Socket Button Head (1/4-28 x 1-1/4")	1	1
10	NLA - Spacer (1/4 x 1/2 x 1/2")	1	1
11	NLA - Bracket Assembly, Black - Left	1	1
12	Washer, Nylon (1/4 x 1/2 x 1/32")	1	7
13	NLA - Spring, Torsion - Left	1	1
14	Shoe, Wheel Lock	1	1
15	Washer, Nylon (1/4 x 7/16 x 5/64")	1	1
1	Locknut (1/4-28)	1	5
2	Screw, Socket Button Head (1/4-28 x 5/8")	1	2
3	NLA - Handle, Wheel Lock, Black - Left	1	1
4	Tip, Plastic, Black	1	1
5	NLA - Link, Stop, Black	1	1
6	NLA - Spacer (1/4 x 1/2 x 5/32")	1	1
7	NLA - Strap, Wheel Lock	1	1
8	NLA - Screw, Button Head Cap (1/4-28 x 7/8")	1	1
9	Screw, Socket Button Head (1/4-28 x 1-1/4")	1	1
10	NLA - Spacer (1/4 x 1/2 x 1/2")	1	1
11	NLA - Bracket Assembly, Black - Left	1	1
12	Washer, Nylon (1/4 x 1/2 x 1/32")	1	7
13	NLA - Spring, Torsion - Left	1	1
14	Shoe, Wheel Lock	1	1
15	Washer, Nylon (1/4 x 7/16 x 5/64")	1	1
1	NLA - Strap, Wheel Lock	1	1
2	Locknut (1/4-28)	1	5
3	NLA - Spacer (1/4 x 1/2 x 1/2")	1	1
4	Washer, Nylon (1/4 x 1/2 x 1/32")	1	7
5	NLA - Spring, Torsion - Left	1	1
6	NLA - Screw, Button Head Cap (1/4-28 x 7/8")	1	1
7	NLA - Spacer (1/4 x 1/2 x 5/32")	1	1
8	NLA - Link, Stop, Black	1	1
9	Tip, Plastic, Black	1	1
10	NLA - Handle, Wheel Lock, Black - Left	1	1
11	NLA - Bracket Assembly, Black - Left	1	1
12	Shoe, Wheel Lock	1	1
13	Screw, Socket Button Head (1/4-28 x 5/8")	1	2
14	Screw, Socket Button Head (1/4-28 x 1-1/4")	1	1
15	Washer, Nylon (1/4 x 7/16 x 5/64")	1	1
2	Locknut (1/4-28)	1	5
3	NLA - Spacer (1/4 x 1/2 x 1/2")	1	1
4	Washer, Nylon (1/4 x 1/2 x 1/32")	1	7
5	NLA - Spring, Torsion - Left	1	1
6	NLA - Screw, Button Head Cap (1/4-28 x 7/8")	1	1
7	NLA - Spacer (1/4 x 1/2 x 5/32")	1	1
8	NLA - Link, Stop, Black	1	1
9	Tip, Plastic, Black	1	1
10	NLA - Handle, Wheel Lock, Black - Left	1	1
11	NLA - Bracket Assembly, Black - Left	1	1
12	Shoe, Wheel Lock	1	1
13	Screw, Socket Button Head (1/4-28 x 5/8")	1	2
14	Screw, Socket Button Head (1/4-28 x 1-1/4")	1	1
15	Washer, Nylon (1/4 x 7/16 x 5/64")	1	1
16	NLA - Strap, Wheel Lock	1	1
3	NLA - Strap, Wheel Lock	1	1
4	NLA - Screw, Button Head Cap (1/4-28 x 7/8")	1	1
5	Screw, Socket Button Head (1/4-28 x 1-1/4")	1	1
6	NLA - Spacer (1/4 x 1/2 x 1/2")	1	1
7	NLA - Spacer (1/4 x 1/2 x 5/32")	1	1
8	Locknut (1/4-28)	1	5
9	NLA - Bracket Assembly, Black - Left	1	1
10	NLA - Link, Stop, Black	1	1
11	NLA - Handle, Wheel Lock, Black - Left	1	1
12	Tip, Plastic, Black	1	1
13	Screw, Socket Button Head (1/4-28 x 5/8")	1	2
14	Shoe, Wheel Lock	1	1
15	Washer, Nylon (1/4 x 7/16 x 5/64")	1	1
16	Washer, Nylon (1/4 x 1/2 x 1/32")	1	7
17	NLA - Spring, Torsion - Left	1	1
1	NLA - Strap, Wheel Lock	1	1
2	Locknut (1/4-28)	1	5
3	NLA - Spacer (1/4 x 1/2 x 1/2")	1	1
4	Washer, Nylon (1/4 x 1/2 x 1/32")	1	7
5	NLA - Spring, Torsion - Left	1	1
6	NLA - Screw, Button Head Cap (1/4-28 x 7/8")	1	1
7	NLA - Spacer (1/4 x 1/2 x 5/32")	1	1
8	NLA - Link, Stop, Black	1	1
9	Tip, Plastic, Black	1	1
10	NLA - Handle, Wheel Lock, Black - Left	1	1
11	NLA - Bracket Assembly, Black - Left	1	1
12	Shoe, Wheel Lock	1	1
13	Screw, Socket Button Head (1/4-28 x 5/8")	1	2
14	Screw, Socket Button Head (1/4-28 x 1-1/4")	1	1
15	Washer, Nylon (1/4 x 7/16 x 5/64")	1	1

NLA - Hill Holder Assembly w/ Hardware - Left

1

N/A

B

Create/add to Wishlist

17

1027268

Screw, Allen Head (1/4-20 x 1")

1

Create/add to Wishlist

18

1038114

NLA - Clamp, Wheel Lock, Non-Threaded (7/8")

1

N/A

A

Create/add to Wishlist

18

1038113

Clamp, Wheel Lock, Threaded (7/8")

1

A

Create/add to Wishlist

18

1026097

Clamp, Wheel Lock, Non-Threaded (1")

1

A

Create/add to Wishlist

18

1026096

Clamp, Wheel Lock, Threaded (1")

1

A

Note Code	Definition
A	Wheel Locks can be mounted either on the seat rails or the (frame-FACTORY SET ORIGINALLY). Frames use the 7/8" clamp and seat rails use the 1" clamp.
B	Includes items 1 - 15.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

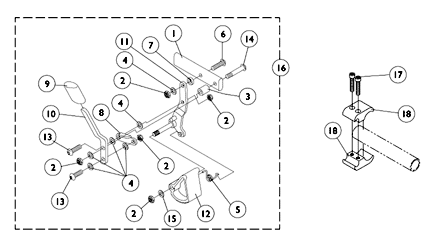

Wheel Locks - High Mount with Hill Holder

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Assembly Part Notes

Catalog Literature
