1

1028399

NLA - Strap, Wheel Lock

1

N/A

Create/add to Wishlist

2

1025765

Locknut (1/4-28)

1

4

Create/add to Wishlist

3

1020363

NLA - Spacer (1/4 x 1/2 x 1/2")

1

N/A

Create/add to Wishlist

4

1026103

Washer, Nylon (1/4 x 1/2 x 1/32")

1

5

Create/add to Wishlist

5

1055346

NLA - Screw, Hex Head (1/4-28 x 3/4")

1

N/A

A

Create/add to Wishlist

6

1055305

NLA - Screw, Socket Button Head (1/4-28 x 3/4")

1

2

N/A

Create/add to Wishlist

7

1028411

NLA - Spacer (1/4 x 1/2 x 5/32")

1

N/A

Create/add to Wishlist

8

1018733

NLA - Link, Stop, Black

1

N/A

Create/add to Wishlist

9

1006490

Tip, Plastic, Black

1

2

Create/add to Wishlist

10

1031780

NLA - Handle, Pull/ Lock, Black - Right

1

N/A

Create/add to Wishlist

10

1031781

NLA - Handle, Pull/ Lock, Black - Left

1

N/A

Create/add to Wishlist

11

1029416

NLA - Decal, Black Lettering - Super Pro-T

1

N/A

Create/add to Wishlist

12

1029420

Shoe, Wheel Lock

1

A

Create/add to Wishlist

13

1055304

Screw, Socket Button Head (1/4-28 x 5/8")

1

Create/add to Wishlist

14

1059284

Screw, Socket Button Head (1/4-28 x 1-1/4")

1

Create/add to Wishlist

15

1026108

Lockwasher (1/4 x 15/32 x 1/64")

1

2

Create/add to Wishlist

16

1026907

Washer (1/4 x 1/2 x 1/16")

1

$8.00

Create/add to Wishlist

17

1026096

Clamp, Wheel Lock, Threaded (1")

1

Create/add to Wishlist

18

1026097

Clamp, Wheel Lock, Non-Threaded (1")

1

Create/add to Wishlist

19

1027268

Screw, Allen Head (1/4-20 x 1")

1

2

Create/add to Wishlist

20

1038552

Wheel Lock, Clamp On, Pull to Lock - Right

1

E

Create/add to Wishlist

20

1038553

Wheel Lock, Clamp On, Pull to Lock - Left

1

E

Create/add to Wishlist

21

1026710

Hill Holder Assembly - Right

1

Create/add to Wishlist

21

1026711

Hill Holder Assembly - Left

1

Create/add to Wishlist

22

1026712

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
	Bracket, Black	1	1
	Screw, Socket Button Head (1/4-28 x 5/8")	1	2
	Screw, Socket Button Head (1/4-28 x 1-1/4")	1	1
	Washer, Nylon (1/4 x 1/2 x 1/32")	1	7
	NLA - Spacer (1/4 x 1/2 x 1/2")	1	1
	Locknut (1/4-28)	1	4
	NLA - Link, Stop, Black	1	1
	NLA - Handle, Wheel Lock, Black - Right	1	1
	Tip, Plastic, Black	1	1
	NLA - Spacer	1	1
	Hill Holder Assembly - Right	1	1
	NLA - Screw, Socket Button Head (1/4-28 x 3/4")	1	1
2	Bracket, Black	1	1
3	Screw, Socket Button Head (1/4-28 x 5/8")	1	2
4	Screw, Socket Button Head (1/4-28 x 1-1/4")	1	1
5	Washer, Nylon (1/4 x 1/2 x 1/32")	1	7
6	NLA - Spacer (1/4 x 1/2 x 1/2")	1	1
7	Locknut (1/4-28)	1	4
8	NLA - Link, Stop, Black	1	1
9	NLA - Handle, Wheel Lock, Black - Right	1	1
10	Tip, Plastic, Black	1	1
11	NLA - Spacer	1	1
12	Hill Holder Assembly - Right	1	1
13	NLA - Screw, Socket Button Head (1/4-28 x 3/4")	1	1
	Bracket, Black	1	1
	Screw, Socket Button Head (1/4-28 x 5/8")	1	2
	Screw, Socket Button Head (1/4-28 x 1-1/4")	1	1
	Washer, Nylon (1/4 x 1/2 x 1/32")	1	7
	NLA - Spacer (1/4 x 1/2 x 1/2")	1	1
	Locknut (1/4-28)	1	4
	NLA - Link, Stop, Black	1	1
	NLA - Handle, Wheel Lock, Black - Right	1	1
	Tip, Plastic, Black	1	1
	NLA - Spacer	1	1
19	Hill Holder Assembly - Right	1	1
	NLA - Screw, Socket Button Head (1/4-28 x 3/4")	1	1
2	Bracket, Black	1	1
3	Screw, Socket Button Head (1/4-28 x 5/8")	1	2
4	Screw, Socket Button Head (1/4-28 x 1-1/4")	1	1
5	Washer, Nylon (1/4 x 1/2 x 1/32")	1	7
6	NLA - Spacer (1/4 x 1/2 x 1/2")	1	1
7	Locknut (1/4-28)	1	4
8	NLA - Link, Stop, Black	1	1
9	NLA - Handle, Wheel Lock, Black - Right	1	1
10	Tip, Plastic, Black	1	1
11	NLA - Spacer	1	1
12	Hill Holder Assembly - Right	1	1
13	NLA - Screw, Socket Button Head (1/4-28 x 3/4")	1	1
	Bracket, Black	1	1
	Screw, Socket Button Head (1/4-28 x 5/8")	1	2
	Screw, Socket Button Head (1/4-28 x 1-1/4")	1	1
	Washer, Nylon (1/4 x 1/2 x 1/32")	1	7
	NLA - Spacer (1/4 x 1/2 x 1/2")	1	1
	Locknut (1/4-28)	1	4
	NLA - Link, Stop, Black	1	1
	NLA - Handle, Wheel Lock, Black - Right	1	1
	Tip, Plastic, Black	1	1
	NLA - Spacer	1	1
	Hill Holder Assembly - Right	1	1
	NLA - Screw, Socket Button Head (1/4-28 x 3/4")	1	1
6	NLA - Spacer (1/4 x 1/2 x 1/2")	1	1
8	NLA - Link, Stop, Black	1	1
11	NLA - Spacer	1	1
13	NLA - Screw, Socket Button Head (1/4-28 x 3/4")	1	1
12	Hill Holder Assembly - Right	1	1
2	Bracket, Black	1	1
3	Screw, Socket Button Head (1/4-28 x 5/8")	1	2
4	Screw, Socket Button Head (1/4-28 x 1-1/4")	1	1
5	Washer, Nylon (1/4 x 1/2 x 1/32")	1	7
7	Locknut (1/4-28)	1	4
9	NLA - Handle, Wheel Lock, Black - Right	1	1
10	Tip, Plastic, Black	1	1

Hill Holder Wheel Lock Assembly - Right

1

F

Create/add to Wishlist

22

1026713

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
	Bracket, Black	1	1
	Screw, Socket Button Head (1/4-28 x 5/8")	1	2
	Screw, Socket Button Head (1/4-28 x 1-1/4")	1	1
	Washer, Nylon (1/4 x 1/2 x 1/32")	1	7
	NLA - Spacer (1/4 x 1/2 x 1/2")	1	1
	Locknut (1/4-28)	1	4
	Tip, Plastic, Black	1	1
	NLA - Handle, Wheel Lock, Black - Left	1	1
	NLA - Link, Stop, Black	1	1
	NLA - Spacer	1	1
	Hill Holder Assembly - Left	1	1
	NLA - Screw, Socket Button Head (1/4-28 x 3/4")	1	1
2	Bracket, Black	1	1
3	Screw, Socket Button Head (1/4-28 x 5/8")	1	2
4	Screw, Socket Button Head (1/4-28 x 1-1/4")	1	1
5	Washer, Nylon (1/4 x 1/2 x 1/32")	1	7
6	NLA - Spacer (1/4 x 1/2 x 1/2")	1	1
7	Locknut (1/4-28)	1	4
8	NLA - Link, Stop, Black	1	1
9	NLA - Handle, Wheel Lock, Black - Left	1	1
10	Tip, Plastic, Black	1	1
11	NLA - Spacer	1	1
12	Hill Holder Assembly - Left	1	1
13	NLA - Screw, Socket Button Head (1/4-28 x 3/4")	1	1
	Bracket, Black	1	1
	Screw, Socket Button Head (1/4-28 x 5/8")	1	2
	Screw, Socket Button Head (1/4-28 x 1-1/4")	1	1
	Washer, Nylon (1/4 x 1/2 x 1/32")	1	7
	NLA - Spacer (1/4 x 1/2 x 1/2")	1	1
	Locknut (1/4-28)	1	4
	Tip, Plastic, Black	1	1
	NLA - Handle, Wheel Lock, Black - Left	1	1
	NLA - Link, Stop, Black	1	1
	NLA - Spacer	1	1
19	Hill Holder Assembly - Left	1	1
	NLA - Screw, Socket Button Head (1/4-28 x 3/4")	1	1
6	NLA - Spacer (1/4 x 1/2 x 1/2")	1	1
7	Locknut (1/4-28)	1	4
8	Tip, Plastic, Black	1	1
9	NLA - Handle, Wheel Lock, Black - Left	1	1
10	NLA - Link, Stop, Black	1	1
11	NLA - Spacer	1	1
12	Hill Holder Assembly - Left	1	1
13	NLA - Screw, Socket Button Head (1/4-28 x 3/4")	1	1
2	Bracket, Black	1	1
3	Screw, Socket Button Head (1/4-28 x 5/8")	1	2
4	Screw, Socket Button Head (1/4-28 x 1-1/4")	1	1
5	Washer, Nylon (1/4 x 1/2 x 1/32")	1	7
	Bracket, Black	1	1
	Screw, Socket Button Head (1/4-28 x 5/8")	1	2
	Screw, Socket Button Head (1/4-28 x 1-1/4")	1	1
	Washer, Nylon (1/4 x 1/2 x 1/32")	1	7
	NLA - Spacer (1/4 x 1/2 x 1/2")	1	1
	Locknut (1/4-28)	1	4
	Tip, Plastic, Black	1	1
	NLA - Handle, Wheel Lock, Black - Left	1	1
	NLA - Link, Stop, Black	1	1
	NLA - Spacer	1	1
	Hill Holder Assembly - Left	1	1
	NLA - Screw, Socket Button Head (1/4-28 x 3/4")	1	1
5	Washer, Nylon (1/4 x 1/2 x 1/32")	1	7
12	Hill Holder Assembly - Left	1	1
3	Screw, Socket Button Head (1/4-28 x 5/8")	1	2
6	NLA - Spacer (1/4 x 1/2 x 1/2")	1	1
10	NLA - Link, Stop, Black	1	1
11	NLA - Spacer	1	1
2	Bracket, Black	1	1
4	Screw, Socket Button Head (1/4-28 x 1-1/4")	1	1
9	NLA - Handle, Wheel Lock, Black - Left	1	1
7	Locknut (1/4-28)	1	4
13	NLA - Screw, Socket Button Head (1/4-28 x 3/4")	1	1
8	Tip, Plastic, Black	1	1

Hill Holder Wheel Lock Assembly - Left

1

F

Create/add to Wishlist

23

1068210

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
	Clamp, Half, Threaded	1	1
	Clamp, Half, Non-Threaded	1	1
	Screw, Allen Head (1/4-20 x 1")	1	2
5	Screw, Allen Head (1/4-20 x 1")	1	2
6	Clamp, Half, Non-Threaded	1	1
7	Clamp, Half, Threaded	1	1
	Screw, Allen Head (1/4-20 x 1")	1	2
	Clamp, Half, Non-Threaded	1	1
	Clamp, Half, Threaded	1	1
	Screw, Allen Head (1/4-20 x 1")	1	2
	Clamp, Half, Non-Threaded	1	1
	Clamp, Half, Threaded	1	1
	Screw, Allen Head (1/4-20 x 1")	1	2
	Clamp, Half, Non-Threaded	1	1
	Clamp, Half, Threaded	1	1
	Screw, Allen Head (1/4-20 x 1")	1	2
	Clamp, Half, Non-Threaded	1	1
	Clamp, Half, Threaded	1	1
	Screw, Allen Head (1/4-20 x 1")	1	2
	Clamp, Half, Non-Threaded	1	1
	Clamp, Half, Threaded	1	1
	Screw, Allen Head (1/4-20 x 1")	1	2
	Clamp, Half, Non-Threaded	1	1
	Clamp, Half, Threaded	1	1
	Screw, Allen Head (1/4-20 x 1")	1	2
	Clamp, Half, Non-Threaded	1	1
	Clamp, Half, Threaded	1	1
	Screw, Allen Head (1/4-20 x 1")	1	2
	Clamp, Half, Non-Threaded	1	1
	Clamp, Half, Threaded	1	1
	Screw, Allen Head (1/4-20 x 1")	1	2
	Clamp, Half, Non-Threaded	1	1
	Clamp, Half, Threaded	1	1
	Screw, Allen Head (1/4-20 x 1")	1	2
	Clamp, Half, Non-Threaded	1	1
	Clamp, Half, Threaded	1	1
	Screw, Allen Head (1/4-20 x 1")	1	2
	Clamp, Half, Non-Threaded	1	1
	Clamp, Half, Threaded	1	1
	Screw, Allen Head (1/4-20 x 1")	1	2
	Clamp, Half, Non-Threaded	1	1
	Clamp, Half, Threaded	1	1
14	Screw, Allen Head (1/4-20 x 1")	1	2
15	Clamp, Half, Non-Threaded	1	1
16	Clamp, Half, Threaded	1	1
19	Screw, Allen Head (1/4-20 x 1")	1	2
	Clamp, Half, Non-Threaded	1	1
	Clamp, Half, Threaded	1	1
5	Screw, Allen Head (1/4-20 x 1")	1	2
6	Clamp, Half, Non-Threaded	1	1
7	Clamp, Half, Threaded	1	1
	Clamp, Half, Threaded	1	1
	Screw, Allen Head (1/4-20 x 1")	1	2
	Clamp, Half, Threaded	1	1
	Clamp, Half, Non-Threaded	1	1
5	Screw, Allen Head (1/4-20 x 1")	1	2
6	Clamp, Half, Non-Threaded	1	1
7	Clamp, Half, Threaded	1	1
	Screw, Allen Head (1/4-20 x 1")	1	2
	Clamp, Half, Non-Threaded	1	1

Kit, Wheel Lock Attaching Hardware (1" Tubing)

1

B ,G

Create/add to Wishlist

1026352

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	NLA - Bolt, Hex Head Cap (1/4-20 x 3/4")	1	2
3	Washer (1/4 x 5/8 x 3/32")	1	2
4	NLA - Clamp, Half, Threaded	1	2
5	NLA - Clamp, Half, Non-Threaded	1	2
6	Washer, Nylon (1/4 x 7/16 x 5/64")	1	2
7	Screw, Socket Head (1/4-20 x 1-1/4")	1	2
19	NLA - Bolt, Hex Head Cap (1/4-20 x 3/4")	1	2
20	Washer (1/4 x 5/8 x 3/32")	1	2
21	NLA - Clamp, Half, Threaded	1	2
22	NLA - Clamp, Half, Non-Threaded	1	2
23	Washer, Nylon (1/4 x 7/16 x 5/64")	1	2
24	Screw, Socket Head (1/4-20 x 1-1/4")	1	2
	NLA - Bolt, Hex Head Cap (1/4-20 x 3/4")	1	2
	Washer (1/4 x 5/8 x 3/32")	1	2
	NLA - Clamp, Half, Threaded	1	2
	NLA - Clamp, Half, Non-Threaded	1	2
	Washer, Nylon (1/4 x 7/16 x 5/64")	1	2
	Screw, Socket Head (1/4-20 x 1-1/4")	1	2
14	NLA - Bolt, Hex Head Cap (1/4-20 x 3/4")	1	2
15	Washer (1/4 x 5/8 x 3/32")	1	2
16	NLA - Clamp, Half, Threaded	1	2
17	NLA - Clamp, Half, Non-Threaded	1	2
18	Washer, Nylon (1/4 x 7/16 x 5/64")	1	2
19	Screw, Socket Head (1/4-20 x 1-1/4")	1	2
	NLA - Clamp, Half, Threaded	1	2
	NLA - Clamp, Half, Non-Threaded	1	2
	Washer, Nylon (1/4 x 7/16 x 5/64")	1	2
	Screw, Socket Head (1/4-20 x 1-1/4")	1	2
	NLA - Bolt, Hex Head Cap (1/4-20 x 3/4")	1	2
	Washer (1/4 x 5/8 x 3/32")	1	2
14	NLA - Bolt, Hex Head Cap (1/4-20 x 3/4")	1	2
17	NLA - Clamp, Half, Non-Threaded	1	2
15	Washer (1/4 x 5/8 x 3/32")	1	2
16	NLA - Clamp, Half, Threaded	1	2
19	Screw, Socket Head (1/4-20 x 1-1/4")	1	2
18	Washer, Nylon (1/4 x 7/16 x 5/64")	1	2

Kit, Wheel Lock Hardware

2

1

C ,D

Note Code	Definition
A	Order Part Number 1063507 (Wheel Lock Shoe Kit) for all Chairs Made Before 10/25/96.
B	Wheel Lock hardware for item 20. Includes items 17-19
C	Not Shown
D	Wheel Lock hardware for Hill Holder Wheel Locks (item 22)
E	Includes items 1 - 16.
F	Includes item 20 and 21.
G	Includes item 17 - 19.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

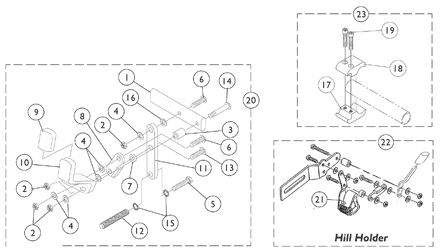

Wheel Locks & Hill Holder

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Assembly Part Notes

Catalog Literature
